BP ASP N (25-170 PE) – is biological waste water treatment plant used for treating communal waste water for: hotels small villages etc, factories etc capacity till 1.000 PE. It is made in container implementation, so it is easy for embedding and can be associated to another to make bigger waste water treatment plant.
BP ASP N/pump (25-170 PE) – has the same characteristics like “BP ASP N”, but it is used when sewage is too deep so it is more economical to put device and sewage shallower

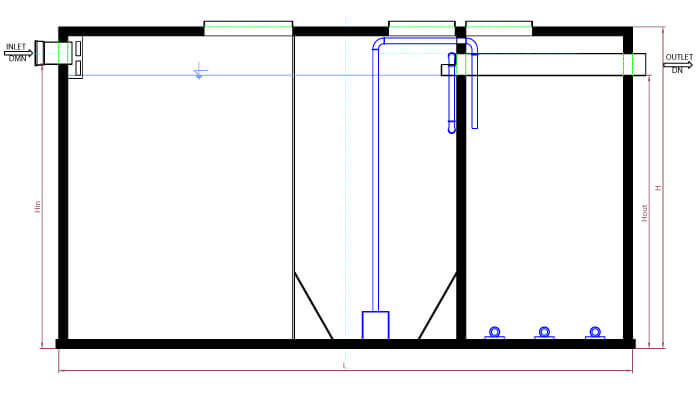

Biological WWT plant type “BP ASP” is made in container implementation, so it is easy for embedding and can be associated to another to make bigger waste water treatment plant. Outside and partitions walls are made from wall elements and polypropylene sheets. Machine – technological equipment of WWTP contains from:
- source of pressed air (blowers)
- fine-bubble aeration system and
- electrical switch board
It is considered BOD5 of 60g per day for one population equivalent (PE) and 150 l of wastewater per day what is in conformity with European norm EN 12566-3 and 12255. Guaranteed outlet values from WWTP AS-VARIOcomp are:
- BOD5 25 mg/l,
- COD 100 mg/l and
- SS 25 mg.
