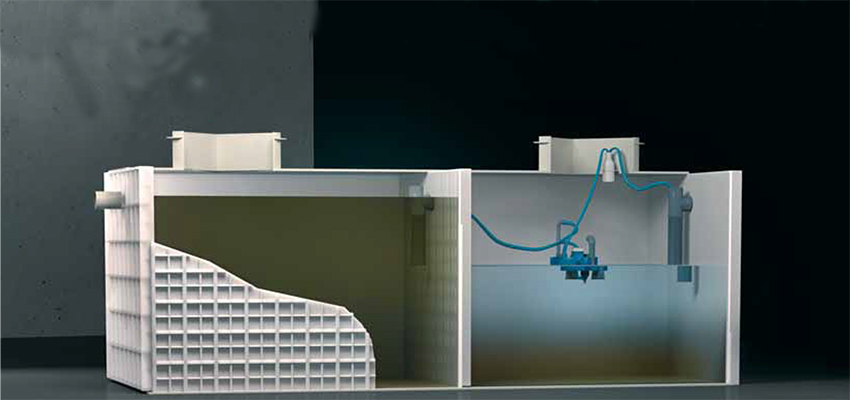

SBR plants are one of option of biological WWTP with aeration, in conformity with European norm EN 12566-3, and the second part of DIN 4261. They are used for treating communal waste water for: small hotels, restaurants and objects with variable hydraulic load.
Mediation, design, consulting and research in the field of wastewater and air treatment ATT&AT d.o.o.
NORM
EN 12566-3 and addition 2nd. part DIN 4261
USE
For smaller settelments and hotels
EMBEDDING TYPE
FUNCTION PRINCIPLE
Water Treatment in SBR unit is process of 3 cycles per day, and 4 phases per cycles.
Phases are:
- Admission of waste water in SBR reactor. Waste water from pre-treated part flows in SBR reactor.
- Aeration
One immersed blower supplies the needed quantity of oxygen for micro organisms. That micro organisms converting agents from waste water in sludge. - Sedimentation
In the phase of sedimentation stops air enriching with oxygen and sludge is precipitate on the bottom of the unit. - Sew of percolation water, outlet – treated water, by air pump goes out of unit and after that starts new cycles.
Every cycle lasts 8 hours, 3 cycles per day. Formed active sludge is pumped in primary settlement tank and if is necessary, together with sludge from primary settlement tank, going to neutralise. For filling we are using sludge pumps of SBR reactor.
TECHNICAL DATA
BP SBR P 4 – 40 PE
| Type of WWTP | PE | Q(m3/day) | BOD5(kg/day) | L(mm) | B(mm) | H(mm) | Hin(mm) | Hout(mm) | DN(mm) | Power(W) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BP SBR 4 P | 4 | 0,60 | 0,24 | 3000 | 1160 | 1520 | 1320 | 1270 | 110 | 0,06 | 367 |
| BP SBR 10 P | 10 | 1,50 | 0,60 | 4500 | 1660 | 1520 | 1320 | 1270 | 110 | 0,15 | 610 |
| BP SBR 20 P | 20 | 3,00 | 1,20 | 4500 | 2160 | 2020 | 1820 | 1770 | 110 | 0,30 | 871 |
| BP SBR 30 P | 30 | 4,50 | 1,80 | 6000 | 2160 | 2460 | 2110 | 2060 | 160 | 0,50 | 1421 |
| BP SBR 40 P | 40 | 6,00 | 2,40 | 8000 | 2160 | 2460 | 2110 | 2060 | 160 | 0,60 | 1792 |
BP SBR EP 6 -40 PE
| Type of WWTP | PE | Q(m3/day) | BOD5(kg/day) | L(mm) | B(mm) | H(mm) | Hin(mm) | Hout(mm) | DN(mm) | Power(W) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BP SBR 6 EP | 6 | 0,90 | 0,36 | 2000 | 1660 | 1520 | 1370 | 1320 | 110 | 0,09 | 330 |
| BP SBR 12 EP | 12 | 1,80 | 0,72 | 3000 | 1660 | 2020 | 1870 | 1820 | 110 | 0,20 | 540 |
| BP SBR 25 EP | 25 | 3,00 | 1,20 | 4000 | 2160 | 2020 | 1820 | 1820 | 110 | 0,30 | 774 |
| BP SBR 30 EP | 30 | 3,75 | 1,50 | 4500 | 2160 | 2020 | 1820 | 1779 | 160 | 0,50 | 848 |
| BP SBR 40 EP | 40 | 6,00 | 2,40 | 6500 | 2160 | 2160 | 1810 | 1760 | 160 | 0,60 | 1194 |
BP SBR P 51 – 250 PE
| Type of WWTP | PE | Q(m3/day) | BOD5
(kg/day) |
L(mm) | B(mm) | H(mm) | L1(mm) | B1(mm) | H1(mm) | Hin(mm) | Hout(mm) | DN(mm) | Power(W) | Weight(kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BP SBR 51 P | 51 | 7,65 | 3,06 | 4000 | 2160 | 2520 | 2300 | 2200 | 160 | 0,80 | 819 | |||
| BP SBR 60 P | 60 | 9,00 | 3,60 | 4500 | 2160 | 2520 | 2300 | 2200 | 160 | 1,10 | 904 | |||
| BP SBR 80 P | 80 | 12,00 | 4,80 | 5500 | 2160 | 2660 | 2390 | 2290 | 160 | 1,20 | 1202 | |||
| BP SBR 100 P | 100 | 15,00 | 6,00 | 7000 | 2160 | 2660 | 2390 | 2290 | 160 | 1,50 | 1464 | |||
| BP SBR 125 P | 125 | 18,75 | 7,50 | 8500 | 2160 | 2660 | 2390 | 2290 | 160 | 1,90 | 1726 | |||
| BP SBR 150 P | 150 | 22,50 | 9,00 | 6500 | 2160 | 2660 | 4000 | 2160 | 2660 | 2390 | 2290 | 160 | 2,30 | 2316 |
| BP SBR 175 P | 175 | 26,25 | 10,50 | 7500 | 2160 | 2660 | 5000 | 2160 | 2660 | 2390 | 2290 | 160 | 2,60 | 2665 |
| BP SBR 200 P | 200 | 30,00 | 12,00 | 8500 | 2160 | 2660 | 5500 | 2160 | 2660 | 2390 | 2290 | 160 | 3,00 | 2929 |
| BP SBR 250 P | 250 | 37,50 | 15,00 | 9160 | 2400 | 2660 | 6160 | 2400 | 2660 | 2390 | 2290 | 160 | 3,80 | 3319 |
